SAFETY Products
Podium PCA

  • Share on

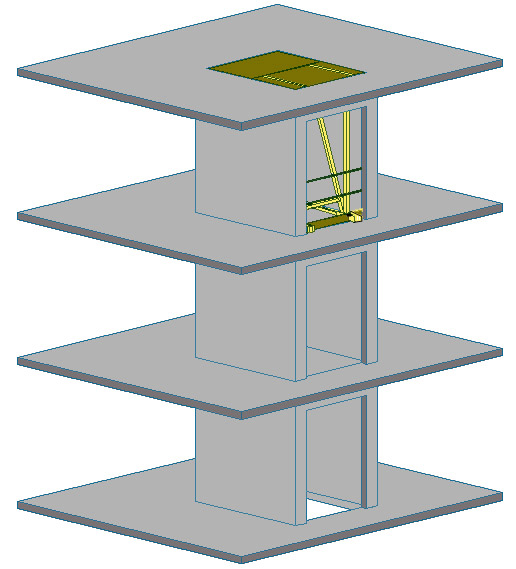

PCA is the tool to be used to secure lift shafts  (in square or rectangular shafts).

With its galvanised monobloc frame delivered with its accessories gathered and packed altogether, PCA is an adaptable material for the entire safety of the users.

Technical documentation

View and download data sheets and mounting sheets :

Related videos

  • Présentation des matériels de sécurité SATECO

PCA Podium

PCA Podium

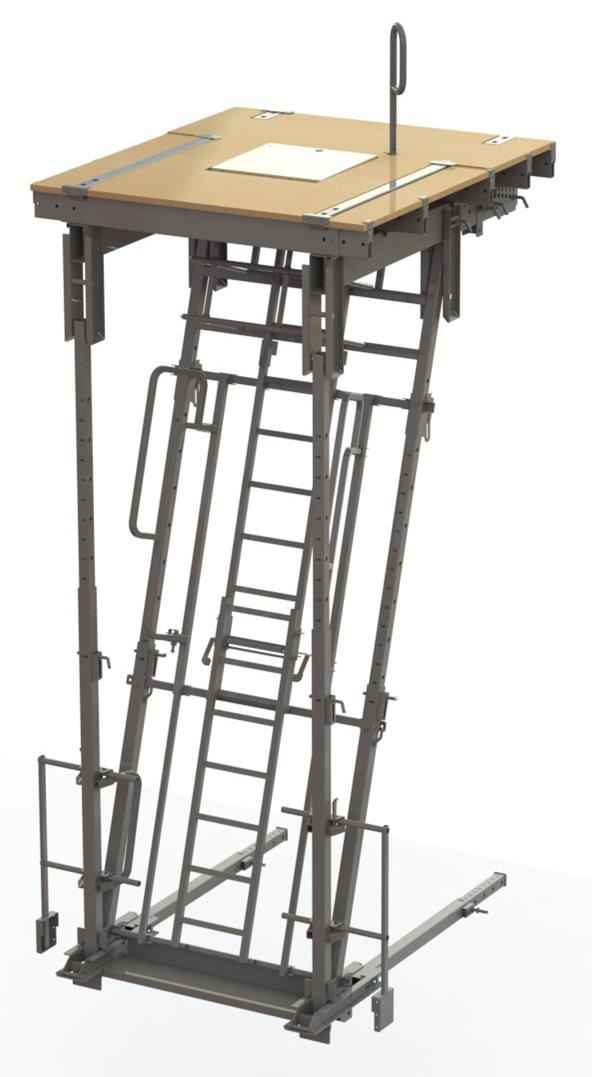

See hereunder the components of the PCA Podium for lifts shafts :

  • Plywood plate thickness 3 cm with access hatch, fixation points without screws
  • Foldable access ladder with crinoline included
  • Lower access working board included
  • Adjustable telescopic feet according the floors height
  • Support on lower floor without counter weight
  • Secured locking system on the access ladder sides

Allowable loads :

Movement overloads: 150 daN/m2
Maximum shutter height: 3.80m (160 daN/m2)

PCA Podium

PCA Podium

Adjustable structure:

In height at a pitch of 10 cm from 2.70 to 4.00 m
In depth at a pitch of 1 cm from 1.60 to 2.50 m
In width at a pitch of 5 cm from 1.60 to 2.60 m

Storage and transport : piling up beam/beam on 4 levels

Handling : maximum 4 levels per parcels
